Can the Landscape Transformer accept a Timer Accessory?

Important Note: Ensure the transformer is unplugged from the outlet before proceeding with installation or adjustments.

1. Disconnect Power:

   • Unplug the transformer from the electrical outlet.
   • For safety, ensure the enclosure is completely closed during this process.

2. Accessing the Enclosure:

   • Open the enclosure of the transformer. This is typically done by removing screws or following the manufacturer's instructions for enclosure access.

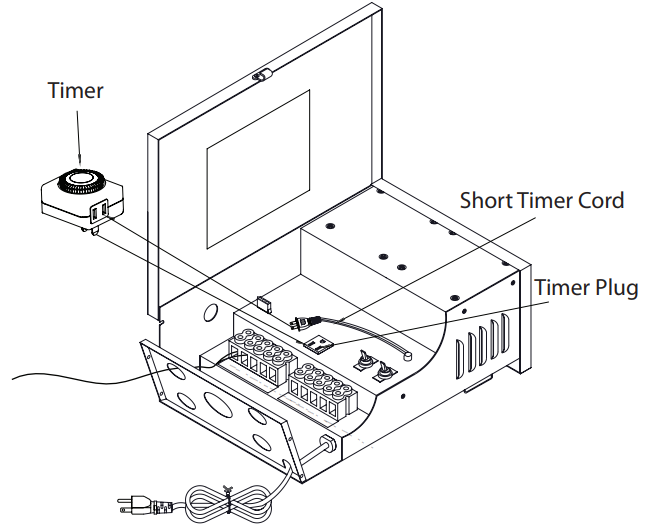

3. Locate the Short Timer Cord:

   • Inside the enclosure, identify the short timer cord connected to the transformer.


4. Unplug the Short Timer Cord:

   • Disconnect the short timer cord from its outlet within the enclosure. This cord is usually used for timer integration.

5. Prepare the Timer:

   • Plug in the external timer into the designated outlet, following the manufacturer's instructions for timer installation.

6. Connect the Short Timer Cord to the Timer:

   • Plug the short timer cord into the corresponding outlet on the external timer.
   • Ensure a secure connection to avoid any interruptions.

7. Set the Timer:

   • Refer to the instructions provided with the timer for accurate setup.
   • Follow the recommended steps to set the timer according to your specific needs and scheduling requirements.

8. Test the Configuration:

   • Once the timer is set, test the configuration by plugging the transformer back into the electrical outlet.
   • Observe the functioning of the timer and ensure that the transformer operates according to the set schedule.

By carefully following these instructions, you can seamlessly integrate an external timer with the transformer, enabling scheduled operation based on your preferences. Always prioritize safety by unplugging the transformer during installation and following the manufacturer's guidelines for both the transformer and timer.
