SERVICING TRIM AND LIGHT ENGINE
(With Service Tool R1A-TOOL)

• Removing Trim

Note: Turn off power and let trim cool down before removing downlight, pinhole or wall wash trim.

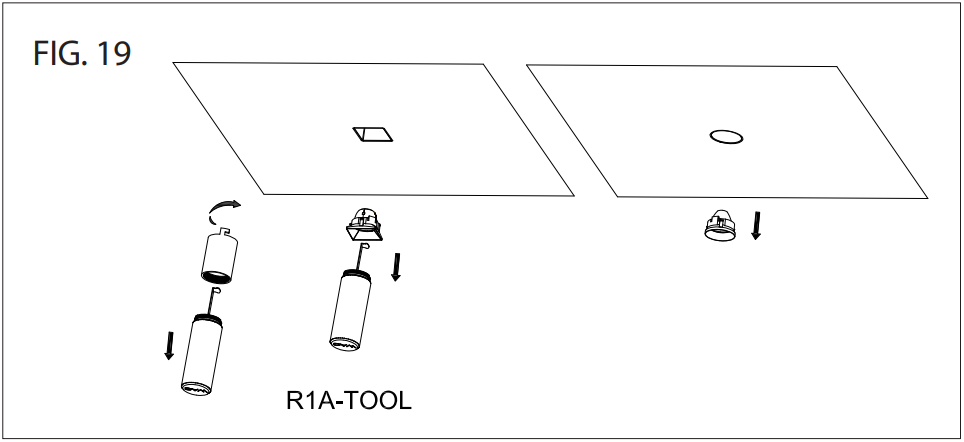

Unscrew the top cylinder of service tool to expose the stainless-steel hook. Place the tip of the hook into the gap between the bottom of reflector and the top of trim. Gently pull down to remove trim from the housing (See FIG. 19). To remove pinhole or wall wash trim, simply use finger to grip the edge of pinhole or the kicker of wall wash trim and gently pull it down to remove it from the housing.

• Replacing Light Engine

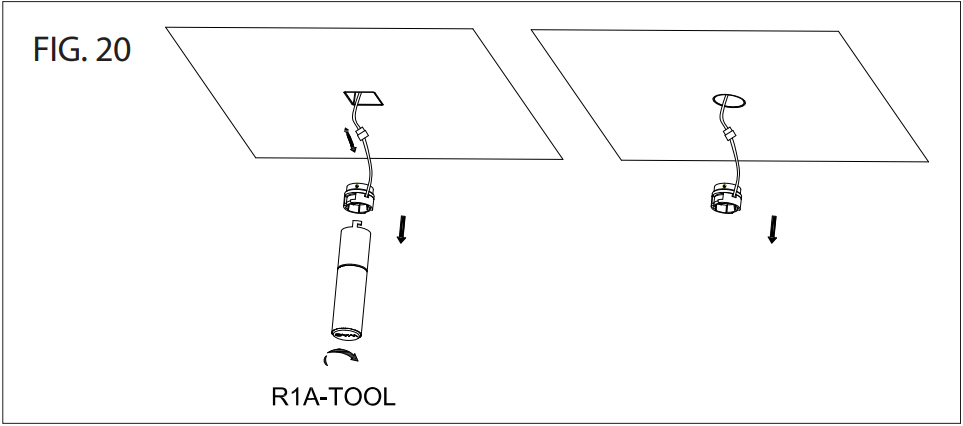

1. Remove the trim from the housing. Screw the top cylinder on the tool base. Locate two notches on edge of the LED holder inside the housing collar. Insert the tip of service tool inside the collar to have the two L-shape hooks travel through the two notches of the LED holder, then slightly turn clockwise to engage with two tabs of the LED holder. Gently pull the light engine down to separate magnets and to remove it from housing. Disconnect the wire connector to replace light engine (See FIG. 20).

2. Connect the new light engine to the wire connector, use finger to push wire leads back to the cavity of housing on side of the light engine receptacle. Be sure the wire leads do not tangle to block the receptacle of light engine. Use the service tool to gently insert light engine through the housing collar to let its base fully engaged with the magnet of the receptacle (See FIG. 20).
