How do I replace the LED for the LED100TR or LED200TR Step Light?

To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70” and local electrical codes. Electrical installation should be performed by a licensed electrician.

The WL-LED200TR does have a replaceable LED module. The fixture can be installed in the wall and spackled over with the LED module able to be changed in field if necessary.

The entire LED module, along with its connecting wires, is secured in the fixture with a spring clip. After installation, the module can be pushed in by hand and angled down to slide out of the front aperture.

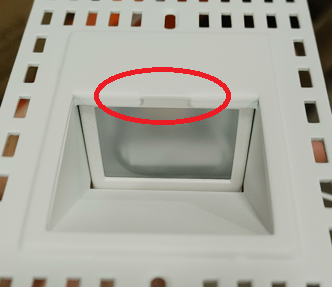

LED Module Clip:

Step 1: Ensure that Power has been cut from the breaker before commencing.

Step 2: Insert a flat head screwdriver to pry and release the LED module:

Step 3: Remove the LED module from the front aperture of the fixture trim.

Step 4: Locate and Disconnect the Hot, Neutral, and Ground connection.

Step 5: Make electrical connections and insert back into the step light frame.
