Follow these instructions to successfully service your downlight power supply. If you are not familiar with or comfortable performing this task, please seek professional assistance. Let's get started!
NOTE: For safety, ensure that power is cut off from the breaker before starting.
STEP 1: Carefully detach the trim from the downlight fixture.

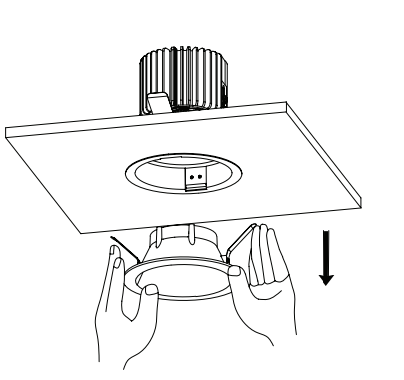

STEP 2: Take out the entire trim assembly to access the internal components.

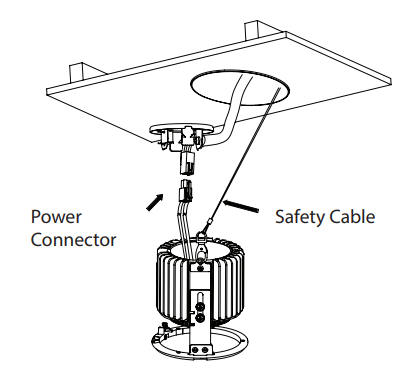

STEP 3: Unplug the trim assembly from the driver unit.

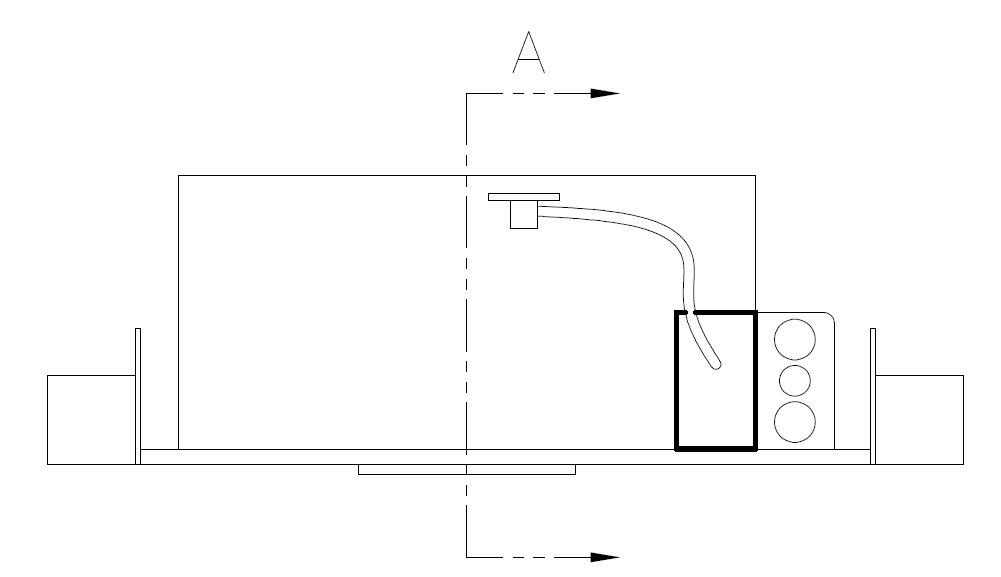

STEP 4: Follow the lead from the trim to find the driver inside the housing.

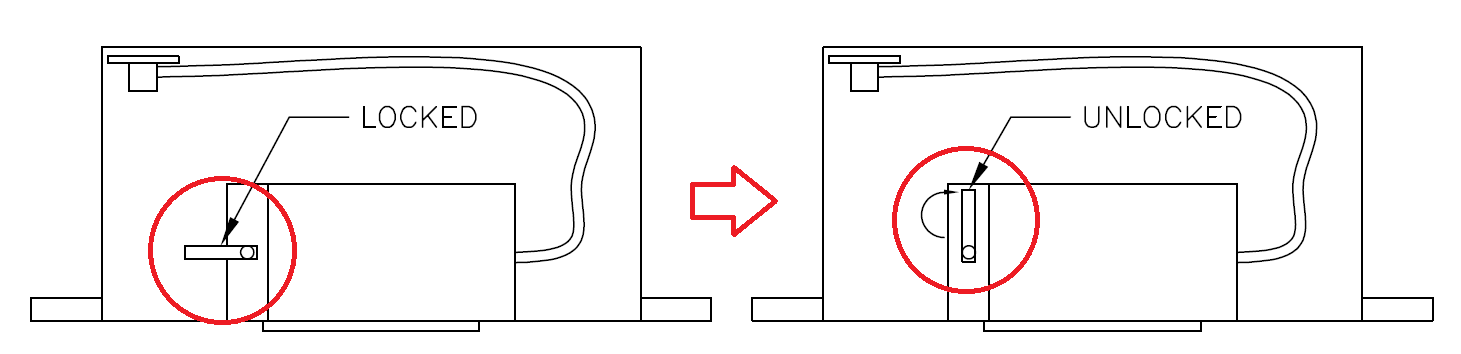

STEP 5: Locate the lock lever on the driver and unlock it.

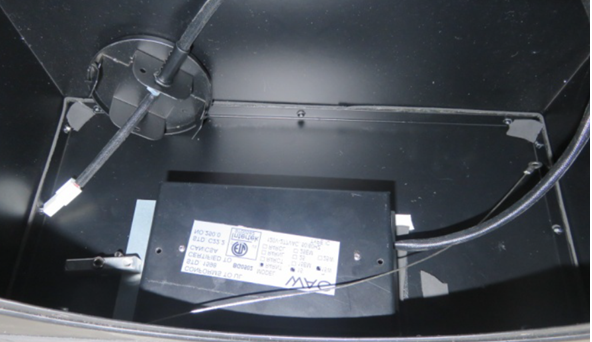

STEP 6: Carefully slide the driver out and disconnect the line voltage connections.
STEP 7: Make electrical connections and secure the driver in place.
STEP 8: Reattach the trim unit by reversing the steps you took to disconnect it.
Your driver has now been serviced.
