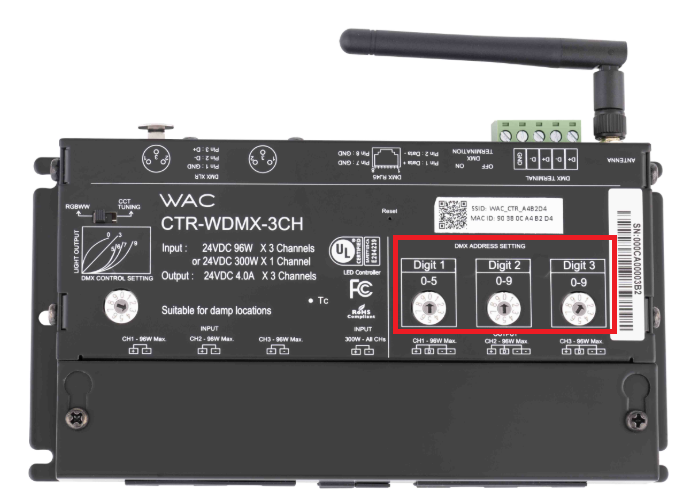

This wireless DMX LED controller has three outputs, with the DMX starting address set by rotating a rotary dial using a flat head screwdriver. The DMX addresses for output channels 1 to 3 are consecutively aligned.

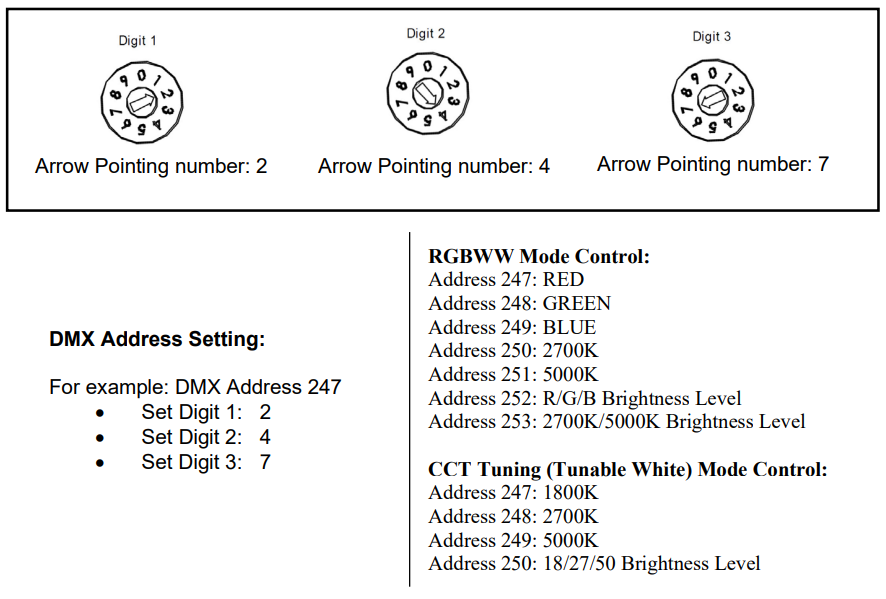

Example Settings:
DMX Address for RGBWW Tape/Pixel:
| DMX Controller | Red | Green | Blue | White | White | RGB Dim | CCT Dim | |
| CTR-WDMX-3CH | Output 1 | 247 | 248 | 249 | 250 | 251 | 252 | 253 |
| Output 2 | 254 | 255 | 256 | 257 | 258 | 259 | 260 | |
| Output 3 | 261 | 262 | 263 | 264 | 265 | 266 | 267 |
DMX Address for Tunable White Tape/Pixel:
| DMX Controller | 1800K | 2700K | 5000K | CCT Dimm | |
| CTR-WDMX-3CH | Output 1 | 247 | 248 | 249 | 250 |
| Output 2 | 251 | 252 | 253 | 254 | |
| Output 3 | 255 | 256 | 257 | 258 |
