Does the CPU support simultaneous ELV dimming alongside DMX?

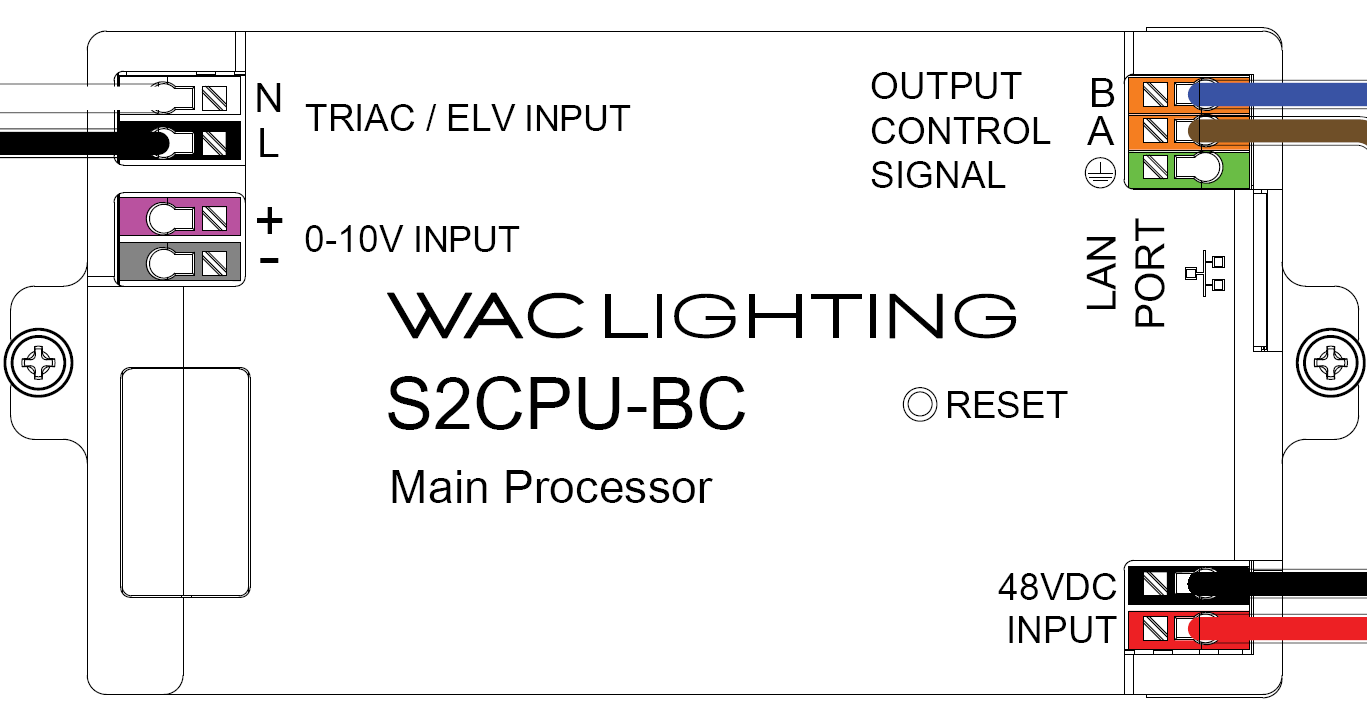

The dimming ports on the VENTRIX Main Processor are mutually exclusive and only one control type can be wired/used at a given time. ie: TRIAC or ELV dimmer input cannot be used alongside 0-10V dimmer input,  X model CPUs that support DMX cannot use DMX alongside a 0-10V or TRIAC/ELV dimmer input, etc.

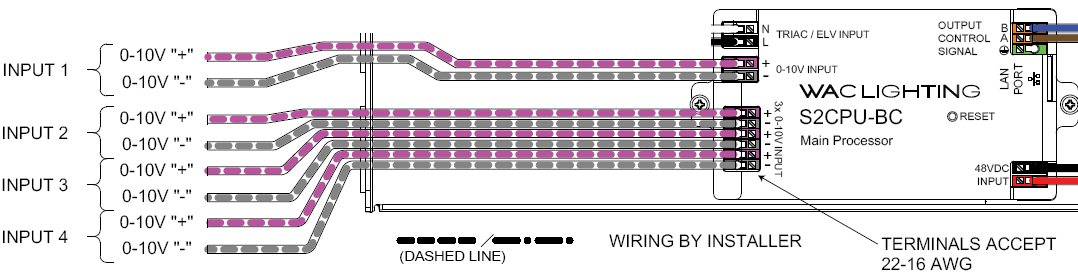

The only exception to this is when using a Z model CPU with multiple 0-10V inputs. All the 0-10V inputs can be used at the same time and assigned to specific fixture groups using the VENTRIX app.
