Packet Based Communication

Introduction:

In the intricate world of DMX (Digital Multiplexing), every lighting masterpiece begins with a fundamental unit: the packet. These packets, consisting of 512 channels or byte values, serve as the building blocks for controlling and orchestrating an array of lighting fixtures. In this article, we'll explore the nuances of DMX packets, their continuous transmission, and the significance of fixture footprints in creating seamless lighting experiences.

DMX Packet Essentials:

A DMX packet encapsulates 512 channels, with each channel representing a byte value ranging from 0 to 255. This binary language, where 0 signifies zero intensity and 255 denotes full intensity, forms the basis for communicating lighting instructions. The precision of byte values allows for nuanced control over a fixture's behavior, enabling a spectrum of effects and dynamic lighting scenarios.

Continuous Transmission and Frame Rates:

The heartbeat of DMX lies in its continuous packet transmission. These byte packets flow from the controller at rates of up to 44 times per second, creating a steady stream of instructions for connected fixtures. The human eye, capable of perceiving changes at a maximum of 30 frames per second, ensures that alterations in value appear smooth, contributing to the seamless transitions in lighting effects.

Fixture Operation and Footprints:

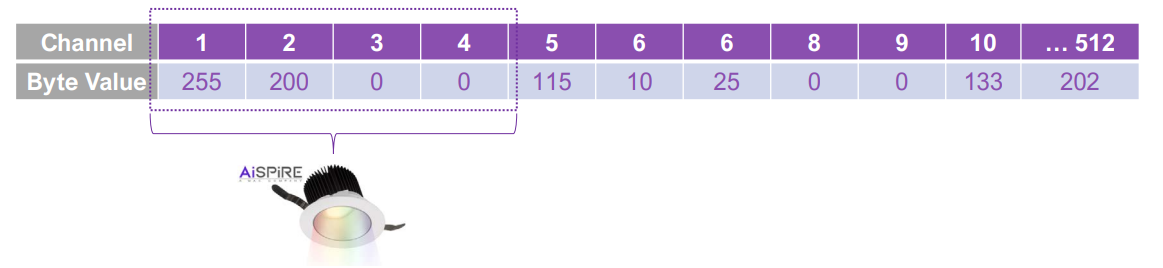

Each lighting fixture operates based on the byte values assigned to its channels within a DMX packet. The quantity of channels required for a fixture's operation is termed its "footprint." This footprint is unique to each fixture type and determines the specific parameters that can be controlled. For instance, an Aurora fixture may have a footprint of four channels: the first for intensity, the second for CCT (Correlated Color Temperature), the third for saturation, and the fourth for hue.

Understanding Fixture Footprints:

Fixture footprints act as a blueprint for configuring lighting setups. By identifying the channels needed to control various aspects of a fixture's behavior, lighting designers can efficiently allocate channels within the 512 available in a DMX universe. This strategic allocation ensures that each fixture receives the precise instructions required for optimal performance and synchronization with the overall lighting design.

Conclusion:

In the realm of DMX, byte values, packets, and fixture footprints converge to create a symphony of light. The precision of 512 channels, transmitted continuously at high rates, allows for the nuanced control required to bring lighting designs to life. By understanding the footprint of each fixture, designers unlock the full potential of DMX, orchestrating captivating visual experiences that seamlessly blend intensity, color temperature, saturation, and hue. In this dance of technology and artistry, DMX remains the conductor, guiding the elements of light to harmonize in perfect unison.
