Wire and Connectivity

Introduction:

In the intricate world of DMX systems, the backbone of seamless communication lies in the wiring that connects devices, fixtures, and controllers. The choice of cable type and adherence to specific wiring rules play a crucial role in ensuring the reliability and stability of DMX networks. In this article, we explore the various cable types and wiring topologies that contribute to the successful implementation of DMX systems.

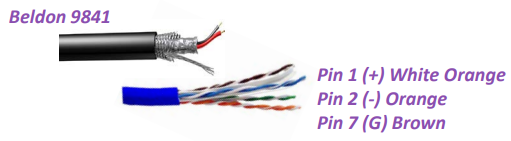

Cable Types for DMX Signal Transmission:

1. DMX Cable:

   • Typically composed of 22-24 AWG, two-conductor with ground.
   • Designed specifically for DMX, this cable ensures optimal digital data transfer.

2. Cat5e or Cat6:

   • Commonly used for data networking, the wire assignment for DMX is typically Org/W=Pos, Org=Neg, Brn+Brn/W=Gnd.


3. Open Terminal or Phoenix:

   • Basic connection type often requiring a small slot-blade screwdriver to secure wires.


4. XLR Connector (3-pin or 5-pin):

   • Cable connector with a specific pinout: 1=Gnd, 2=Neg, 3=Pos (4+5=NC).


5. RJ45 Cat5e or Cat6:

   • Found in many DMX drivers/decoders, the pinout is typically 1=Positive, 2=Negative, 7(G)=Ground.


Wiring Topology Rules:

From the output of each DMX universe, specific rules govern the layout of the wiring topology in a DMX system:

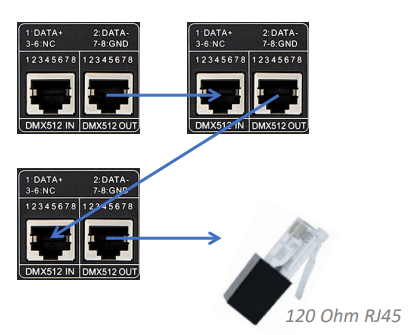

1. Series Connection:

   • All DMX devices must be connected in series using the DMX communication cabling.
   • Most devices feature two DMX ports, labeled as IN or OUT.

2. End-of-Run Resistor:

   • At the end of every DMX run, a 120 Ohm, 0.5 Watt resistor should be in place.
   • This resistor can be integrated as a switch on a device or a separate part connecting to the line.


Understanding these rules ensures the proper functioning of the DMX system, preventing signal issues and maintaining the integrity of the communication network. The meticulous selection of cable types and adherence to wiring guidelines form the foundation for reliable and dynamic DMX installations.

Conclusion:

As the dazzling world of lighting control relies heavily on the efficiency of DMX systems, the careful consideration of cable types and adherence to wiring rules become imperative. Whether utilizing DMX cables, Cat5e/Cat6, open terminals, XLR connectors, or RJ45 ports, each component plays a vital role in the seamless transmission of digital signals. By understanding the intricacies of DMX wiring, technicians and designers empower themselves to create captivating lighting designs that come to life with precision and reliability.
