Fundamentals and Cheat Sheet

Introduction:

In the realm of lighting control systems, the term DMX stands as an acronym for Digital Multiplexing. This non-proprietary protocol, often paired with packet-based communication, has become a cornerstone in the world of professional lighting design and control. In this article, we will delve into the key aspects of DMX, from its basic structure to practical considerations for optimal implementation.

DMX Basics:

At its core, DMX is a communication protocol that utilizes the RS485 standard. This digital language allows for the seamless control of lighting fixtures, enabling precise adjustments and synchronization in diverse settings. A DMX Universe, a fundamental concept in this system, consists of 512 channels of byte values, where each byte ranges from 0 to 255.

Fixture Addressing and Technology Footprint:

The addressing of fixtures within a DMX system follows a sequential pattern based on the technology footprint. Each fixture is assigned a specific address within the universe, allowing for individual control and customization. Understanding this addressing scheme is crucial for creating cohesive and synchronized lighting designs.

System Limitations:

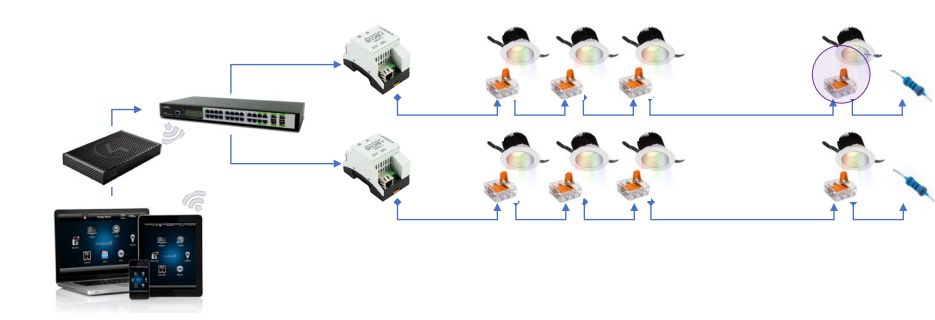

To ensure the stability and efficiency of a DMX system, certain limitations must be considered. A maximum of 32 fixtures per DMX Gateway is recommended to prevent data congestion and maintain optimal performance. Additionally, the maximum distance from the gateway to the last fixture should not exceed 1000 feet, with a maximum distance of 300 feet between each DMX device.

Connection Methods:

DMX offers flexibility in connecting fixtures to the bus run, with various methods such as RJ45, Phoenix, and Wago connectors. These options accommodate different preferences and installation requirements, providing versatility in designing lighting setups.

Series Connection and Termination:

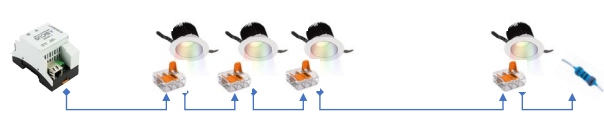

Each fixture in a DMX system must be connected in series, typically featuring IN and OUT terminations. This sequential connection ensures the proper flow of data through the system. To prevent signal reflection and maintain signal integrity, it is essential to terminate each DMX line with a 120-ohm resistor across the DMX (+) and (-) terminals.

Conclusion:

As the backbone of modern lighting control, DMX offers a robust and reliable solution for achieving dynamic and synchronized lighting effects. Understanding the basics of DMX, from its digital multiplexing nature to practical implementation considerations, empowers lighting designers and technicians to create captivating visual experiences. By adhering to the recommended guidelines and best practices, professionals can harness the full potential of DMX technology in elevating their lighting designs.
