How do I connect to my ABiCUS Gateway?

Introduction

ABiCUS is a valuable addition to your IT network, providing essential functionalities. To seamlessly integrate ABiCUS into your network, follow this detailed guide. It assumes the ABiCUS device is connected to the Ethernet network.

Confirm ABiCUS Connectivity

Before proceeding, confirm that ABiCUS is properly connected to the Ethernet network. Ensure that the Ethernet cable is securely plugged into both the ABiCUS device and an active network port.

Discovering ABiCUS on a Windows PC

1. Open Windows File Explorer:

   • Navigate to the File Explorer on your Windows PC.

2. Click "Network" at the Bottom:

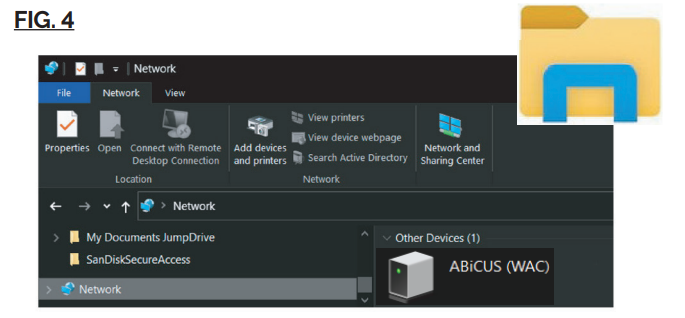

   • In the left-hand navigation pane, find and click on the "Network" option. (Fig. 4)


3. Locate ABiCUS:

   • Connected ABiCUS devices will appear in the network list with a symbol indicating their presence.

   Alternatively:

   • Refer to the project router or network client list to find the IP address assigned to ABiCUS. The DHCP table of the router is the recommended source for this information.

4. Access ABiCUS Webpage:

   • Double-click the ABiCUS icon in the network list to open its webpage.

Configuring ABiCUS Settings

5. Navigate to Settings:

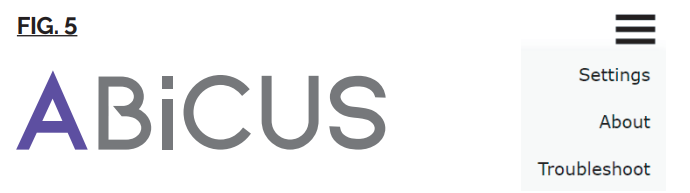

   • On the ABiCUS webpage, hover over the three-line menu header and click on "Settings." (Fig. 5)


6. Access Ethernet Tab:

   • Within the Settings menu, locate and click on the "Ethernet" tab.

7. Define a STATIC IP (Optional):

   • If necessary, it is possible to define a static IP for ABiCUS within the Ethernet settings.

8. Contact Network Administrator:

   • If you intend to set a static IP, it's crucial to contact the project network administrator for guidance and to ensure compatibility with the network configuration.

Conclusion

By following these steps, you have successfully added ABiCUS to your IT network and accessed its settings through a Windows PC. For additional guidance, especially if using MacOS devices, it is recommended to contact the ABiCUS factory for specific instructions.
