Updating ABiCUS Firmware

Keeping your ABiCUS device's firmware up to date is crucial for ensuring optimal performance and security. The process is user-friendly and can be done directly from the Home Screen, following a series of straightforward steps. Before initiating a firmware update, it's essential to export and save your current configuration to prevent any loss of data. Here's a brief guide on how to efficiently update your ABiCUS device firmware.

Step 1: Export and Save Your Configuration

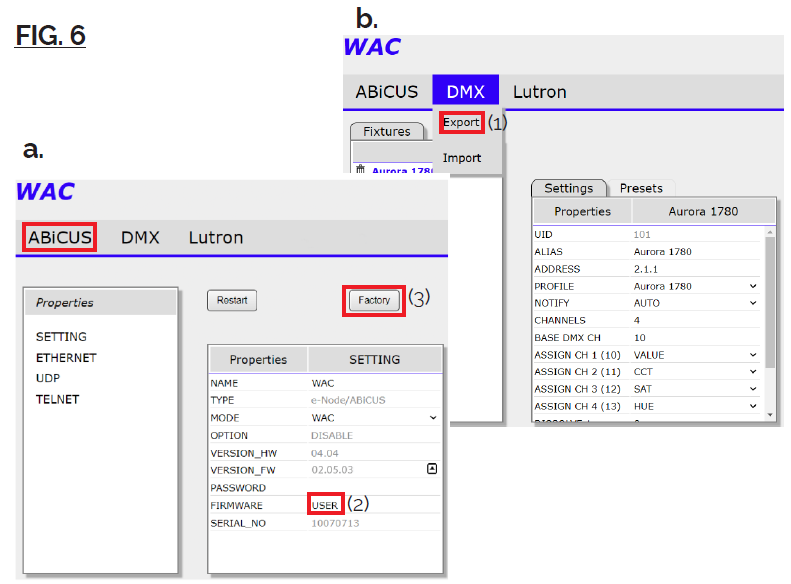

• Navigate to the DMX tab from the Home Screen and select the option to export. This action saves your current device configuration. Refer to FIG.6 (b) for guidance.
• It's a good practice to always export and save the latest configuration to a safe location before any updates. This ensures that you can restore your settings if needed.

Step 2: Prepare for Firmware Update

• Go to the ABiCUS TAB and locate FIG.6 (a). Ensure the FIRMWARE setting is adjusted to “USER”. This is a necessary step to proceed with the update.


Step 3: Initiate the Firmware Update

• Click on the UP arrow next to the VERSION_FW to check for the latest firmware version.
• Select “Check Web” followed by “Web Update”. If a newer version is available, it will automatically download and update your device. The process concludes with a “write to flash”, and the device will reboot to the Home Screen.

Troubleshooting Tips

• If the update process exceeds two minutes, it might indicate a problem with your Internet connection. Check your connectivity and attempt the update again.

Factory Reset Option

• In some cases, you might need to revert your ABiCUS device to its factory settings. This can be done by clicking the “Factory” button. Be aware that performing a factory reset erases all configured data on your device, returning it to default settings.
