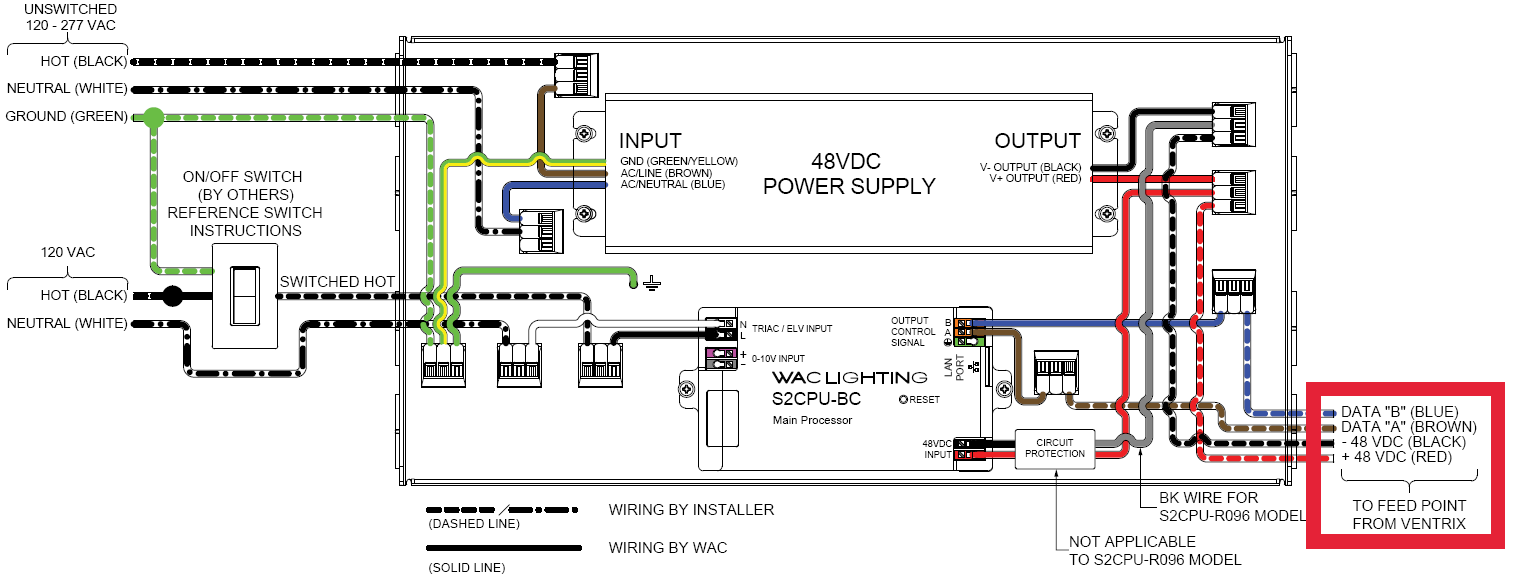

What cable needs to be run from the CPU to the VENTRIX Channel? April 26, 2024 15:03 Updated Four wires need to be run from the CPU to channel. Two 12AWG conductors for power and two 16AWG conductors for data. Related articles What are the different ways VENTRIX channel can be installed? How far can my lead wire run from the CPU to start of VENTRIX channels? Are the Data A and Data B wires necessary to be run from the CPU to the VENTRIX Channel? Does the CPU always need unswitched/undimmed 120-277VAC? How do I Configure 0-10V zones for my VENTRIX fixtures? Comments 0 comments Please sign in to leave a comment.
