How do I Configure 0-10V zones for my VENTRIX fixtures?

Introducing VENTRIX, the ultimate lighting, power, and control system equipped with high-performance lighting elements tailored for discerning needs. Perfect for retail, restaurant, commercial office, or residential settings, VENTRIX allows you to configure your lighting plan to exact specifications without the wait of custom lead times. Get precisely what you need, exactly when you need it.

0-10V Group Commissioning via the VENTRIX App:

NOTE: VENTRIX CPU must be commissioned to the App before starting this process.

1. Select the  from the home screen.
2. Select Settings

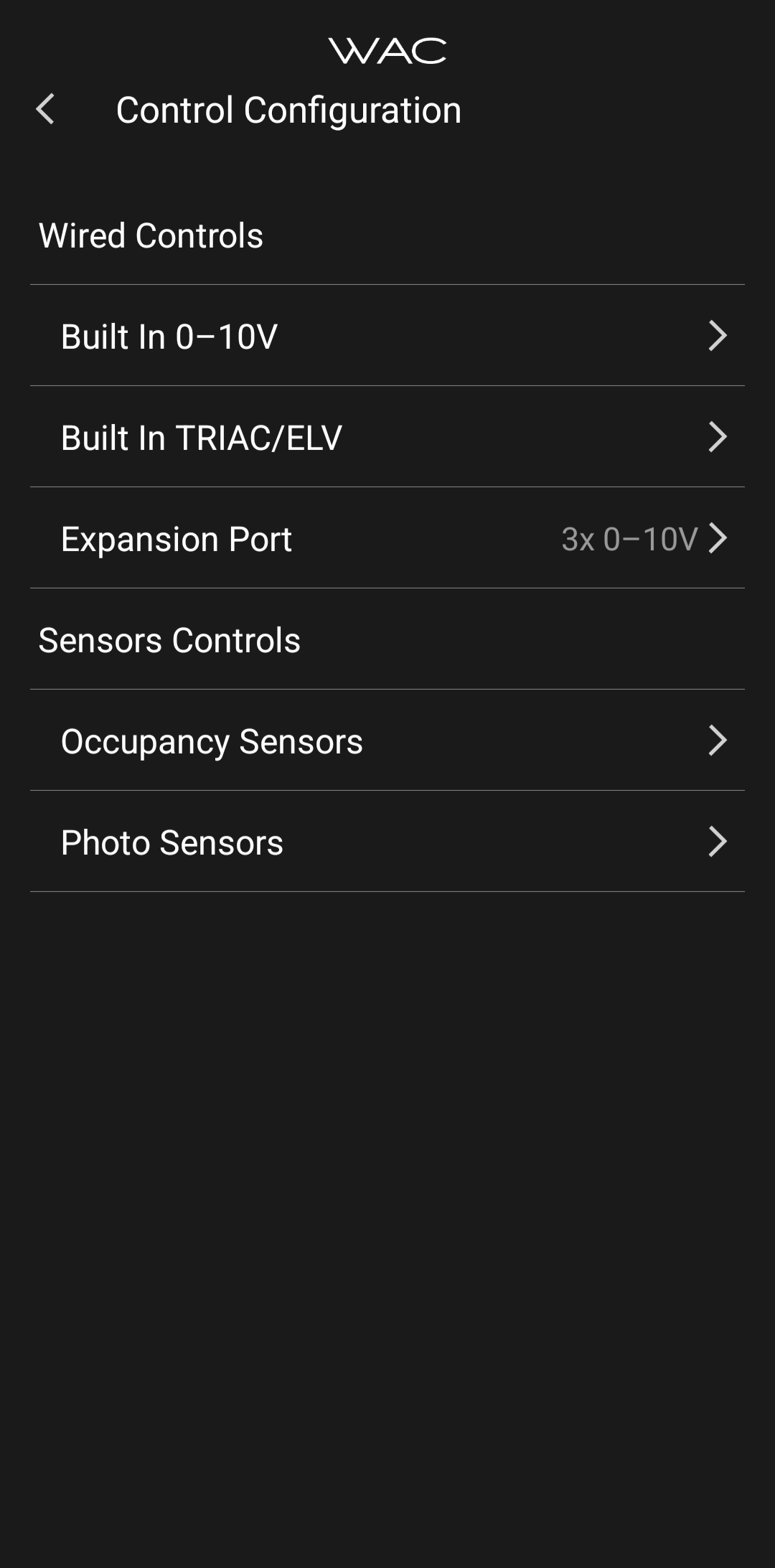

3. Select Control Configurations

4. Select Built in 0-10V or Expansion Port (3x 0-10V)


5. If utilizing the expansion ports, select one of the three 0-10V options

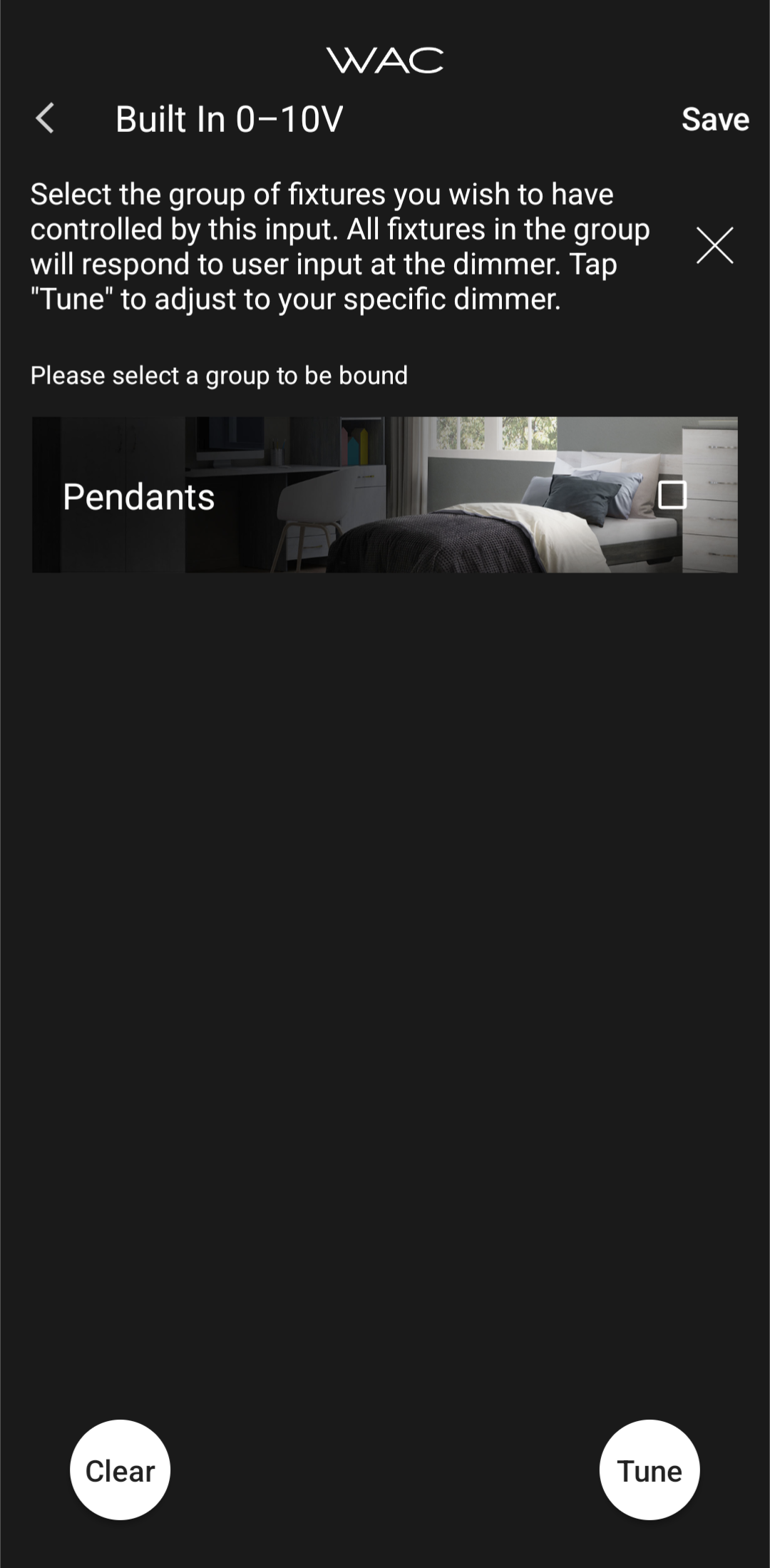

6. Select a group
7. Select Save



8. Repeat for all devices or groups that need to be configured.
