HIGH OUTPUT & DIFFUSE INDIRECT
This instructional article is designed to guide you through the process of installing your VENTRIX indirect lighting elements and driver to the channel.
STEP 1: DRIVER INSTALLATION
- Before starting, ensure the power supply is turned off at the breaker to avoid electrical hazards.

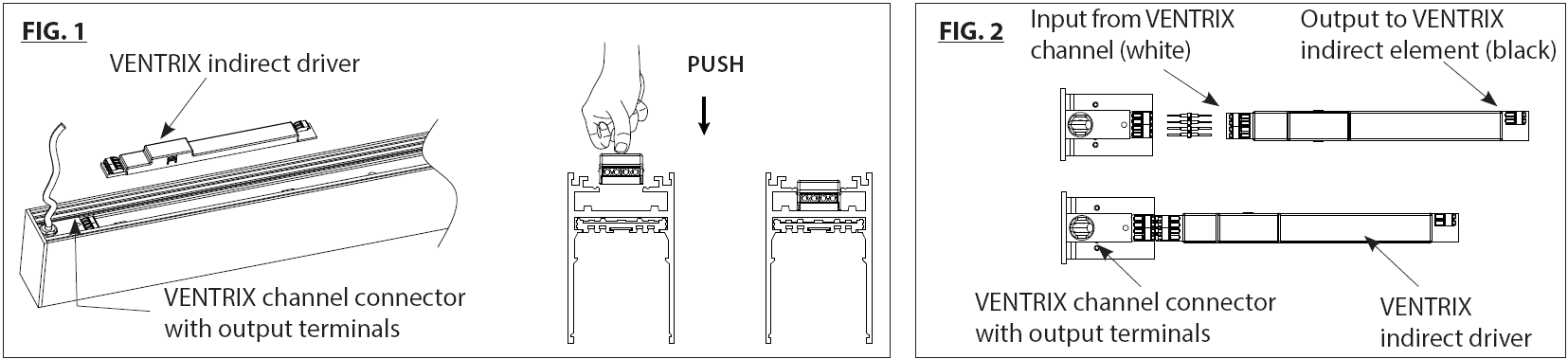

- VENTRIX indirect driver may be installed on top of horizontal VENTRIX suspended channel system. Set input side of the indirect driver towards VENTRIX feed end or VENTRIX channel connector, then push the driver down to firmly touch the channel. (See FIG. 1)
- Using two white 2-Pin connectors, join the indirect driver terminals to the terminals of the VENTRIX feed end or VENTRIX channel connector. (See FIG. 2).
CAUTION: VENTRIX indirect drivers are designed to only be powered by VENTRIX CPU. Do not input power from other source, or damage may occur.
STEP 2: DETERMINE INDIRECT LIGHT ELEMENT LENGTH(S)
- Measure the length of indirect channel space available to house the indirect element. Be sure to account for the end cap mounting bracket.
- Multiple indirect elements can be joined together up to 96W of power. If necessary, indirect elements are also field shorten-able at markings.

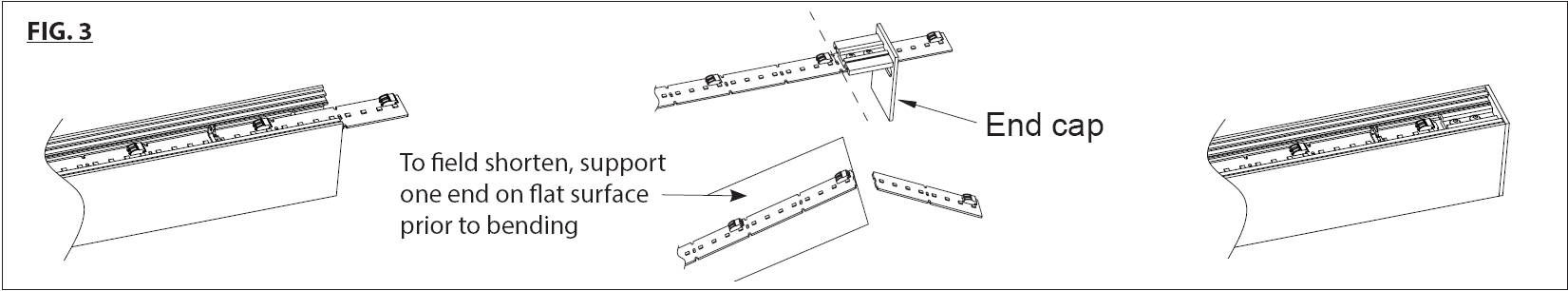

- To field shorten, support one side of indirect element on flat surface and bend back and forth gently directly at field cut mark until module separates. (See FIG. 3)
STEP 3. INDIRECT ELEMENT INSTALLATION

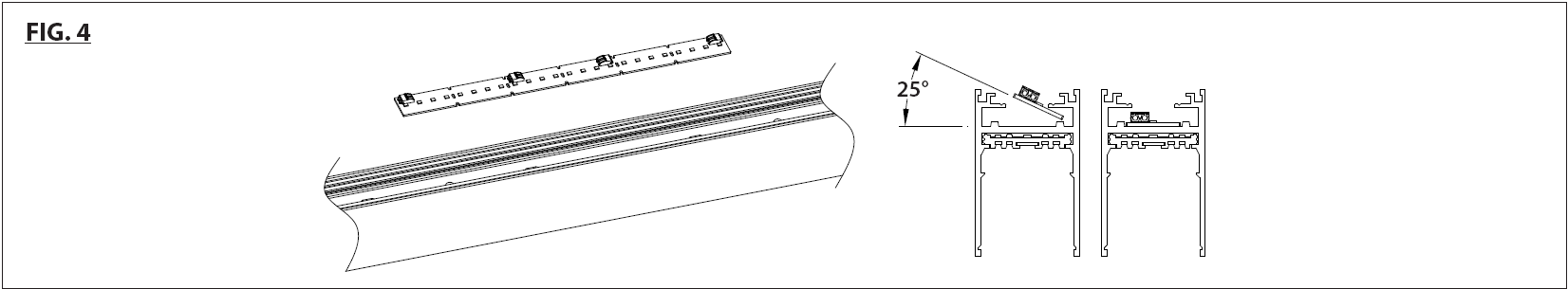

- After selecting the appropriate indirect element length, insert the side of the element without the wire terminals into the channel at an angle. Then push the element down and relocate it within the grooves of the channel. (See FIG.4)

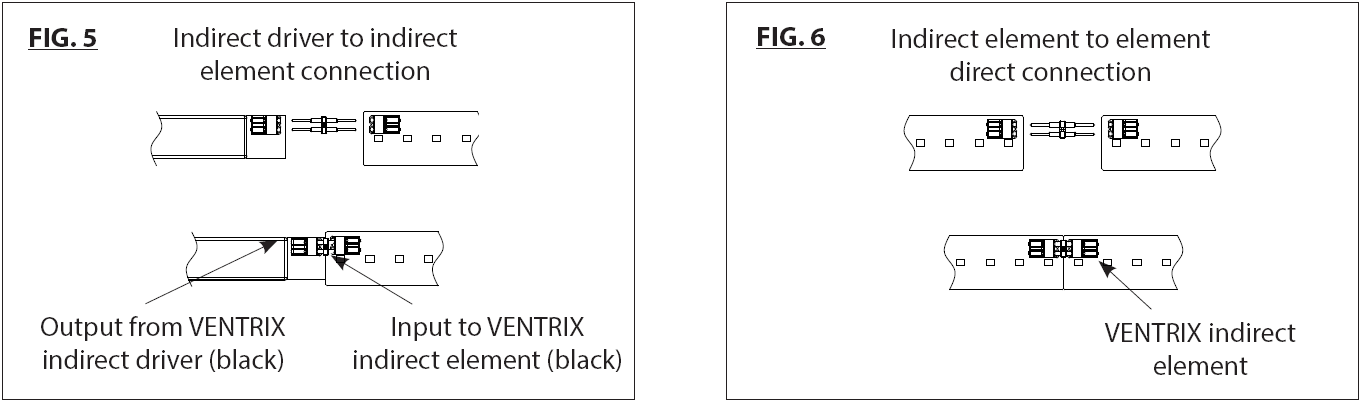

- Driver to element Connection: Be sure to align the wire terminals on-board the element for connection to the indirect driver. Connect the indirect driver to the indirect element using the provided 2-Pin Black Connector. (See FIG. 5).
- Element to element Connection: Connect elements together using the provided 2-Pin Black Connector. (See FIG. 6).

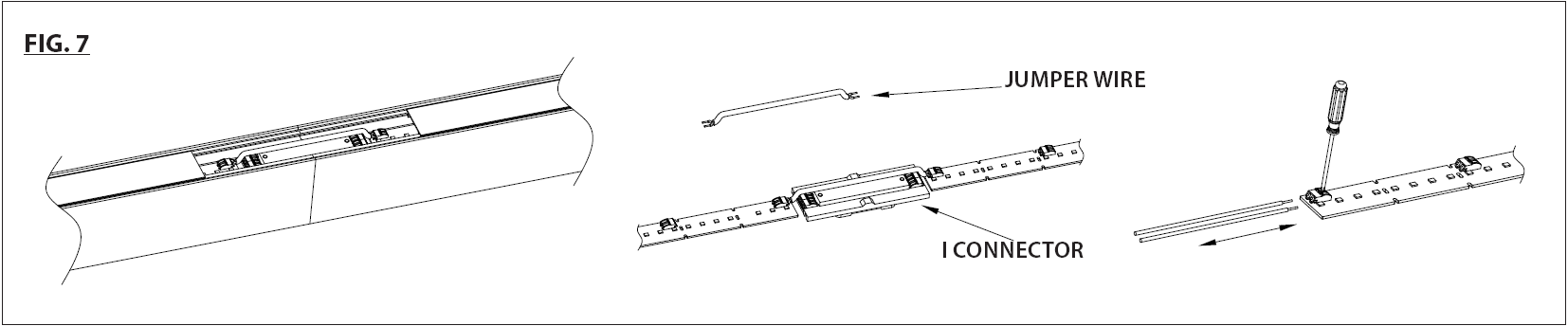

CAUTION: VENTRIX indirect elements are designed to only be powered by VENTRIX indirect drivers only. Do not input power from other source, or damage may occur. - Indirect element to indirect element connection using jumper wire: Indirect elements may also be connected using a jumper wire. (See FIG 7)
- After installation, turn the power back on at the breaker and test the fixture to confirm it operates correctly.
For more information on how to secure the Indirect Lighting Elements with clips, see the product instructions found on the Driver or Indirect Element Instruction Sheet.
