RTI Systems

Follow these steps to integrate with an RTI system:

Step 1. Commission CSI Controllers.

Commission all connected ILC-xx0/IMC-xx0 and/or DMX "Fixtures" as per Converging Systems’ Quick Start Guides or Full Version Installation Guides (see below for links).

MOST IMPORTANTLY, ASSIGN ALL Zone/Group/Node and Short Alias Names before proceeding to next Step.

• ILC-x00 CONTROLLERS--Download the most recent Converging Systems ILC-xxx Quick Start Guides (under Lighting Controllers/Quick Start Guides) here
• IMC-xxx/CVM motor channels--Download the most recent Converging Systems Motor Installation Guides (under Motor Controllers/Installation Guides) here
• DMX fixtures (within the e-Node/dmx)--Download the most recent Converging Systems DMX Quick Start Guides here and Programming Manuals (under Gateways e-Node/xx) here

Note: For a detailed/more exhaustive RTI Integration Notes, click here and pick ”Integration Notes.”

Step 2. Download and Import Drivers.

If you do not have the Converging Systems Intelligent Lighting Controller in your system file, go to the RTI dealer portal and download the latest Converging System Driver and import into your project (see detail in table below).

Note: RTI uses a single driver for the Converging Systems gateway (i.e., e-Node/xxx, CVM, IMC-170 or OEM branding for such) which also encompass internally the necessary logic to support in addition all connected motor or lighting controllers (IMC-xxx or ILC-xx) devices within a single driver. Therefore, only one driver is needed for each CSI gateway (with a single IP address) to handle all communications requirements of the CSI gateway as well as to all connected controllers.

Import Directions

1. Within the System Workspace window, select your applicable RTI processor.

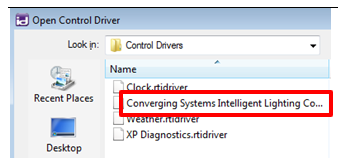

2. Next select the Drivers tab at the bottom of the Control System window and select the Add function and navigate to the Converging Systems Intelligent Lighting Controller entry.

3. After you have added the Converging Systems Intelligent Lighting Controller to your RTI processor’s Driver library, you will see the following entry.
